Y-Angle Valve (YS311S)
|
Ä«Å×°í¸®
|
½ºÅÙÀη¹½º
|
![](http://www.4m.co.kr/product/image/title01-1.gif) |
|
Flange Rating |
|
PN 10 KS / JIS 5 / 10K |
Nominal Diameter |
|
DN15(1/2") to DN65(1.5") |
Temperature Range |
|
-40¡ÆC (-40 F) to 180¡É (356¡ÆF) |
Working Pressure |
|
Full pressure rating |
| |
|
![](http://www.4m.co.kr/product/image/title01-2.gif) |
|

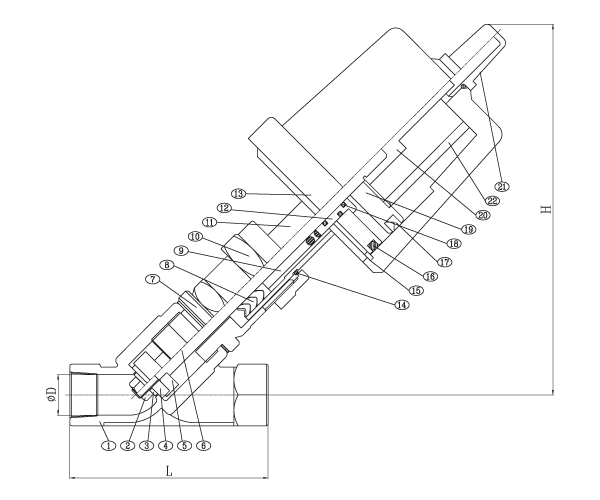

NO. |
![](http://www.4m.co.kr/product/image/line.gif) |
PART NAME |
![](http://www.4m.co.kr/product/image/line.gif) |
QUANTITY |
![](http://www.4m.co.kr/product/image/line.gif) |
MATERIAL |
![](http://www.4m.co.kr/product/image/line.gif) |
REMARK | |
|
1 |
Body |
1 |
SCS13 |
|
2 |
Seat Nut |
1 |
SUS |
|
3 |
Seat Conver |
1 |
SCS13 |
|
4 |
Seat |
1 |
M.T.F.E |
|
5 |
Disk |
1 |
SUS304 |
|
6 |
Stem |
1 |
SUS304 |
|
7 |
Bonnet |
1 |
SCS13 |
|
8 |
Packing |
1 Set |
P.T.F.E |
|
9 |
Spring |
1 |
|
|
10 |
Connector Nut |
1 |
SCS13 |
|
11 |
Connector |
1 |
SCS13 |
|
12 |
Bush |
1 |
Brass |
|
13 |
Cylinder |
1 |
SCS13 |
|
14 |
Stop Ring |
1 |
SUS |
|
15 |
Snap Ring |
1 |
S45C |
Cr. Plate |
16 |
O-Ring |
1 |
NBR |
|
17 |
U-Ring |
1 |
NBR |
|
18 |
O-Ring |
3 |
NBR |
|
19 |
Piston |
1 |
Aluminium |
|
20 |
Indicator |
1 |
Brass |
|
21 |
Indicator Cover |
1 |
P.P |
|
22 |
Spring |
1 |
SUS | | | |
![](http://www.4m.co.kr/product/image/title01-4.gif) |
|
SIZE |
![](http://www.4m.co.kr/product/image/line.gif) |
DIMENSION (mm) |
|
Inch |
![](http://www.4m.co.kr/product/image/line.gif) |
mm |
![](http://www.4m.co.kr/product/image/line.gif) |
L |
![](http://www.4m.co.kr/product/image/line.gif) |
¨ªD |
![](http://www.4m.co.kr/product/image/line.gif) |
H | |
|
1/2 |
15 |
96 |
15 |
160 |
3/4 |
20 |
100 |
20 |
164 |
1 |
25 |
105 |
25 |
167 |
1 1/4 |
32 |
160 |
32 |
250 |
1 1/2 |
40 |
160 |
40 |
250 |
2 |
50 |
185 |
50 |
266 |
2 1/2 |
65 |
185 |
65 |
295 | | | |
|
