품 목
|
4M 물용 버터플라이 밸브 LEVER
|
|
카테고리
|
버터플라이
|
 |
|
| Flange Rating |
|
ANSI CL. 150
PN 10 / 16 / 20 |
| Nominal Diameter |
|
DN40(1.5") to DN600(24") |
| Temperature Range |
|
-20°C (-4 F) to 120℃ (250°F) |
| Working Pressure |
|
Full pressure rating |
| |
| |
 |
|

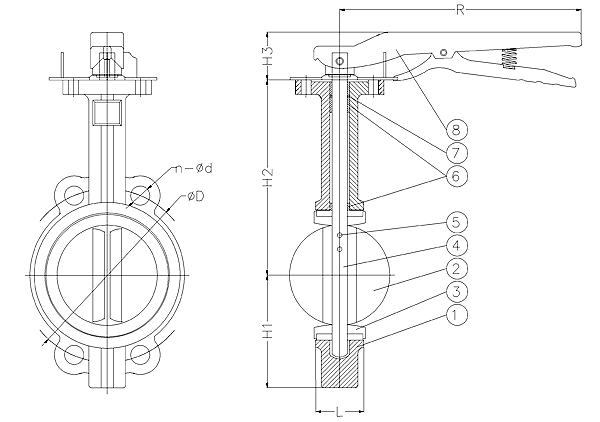

| NO. |
 |
PART NAME |
|
QUANTITY |
|
MATERIAL |
|
REMARK | |
|
| 1 |
Body |
1 |
FC200(10K) FCD450(16/20K) |
|
| 2 |
Disc |
1 |
SCS13 |
|
| 3 |
Seat |
1 |
EPDM/NBR |
|
| 4 |
Stem |
1 |
SUS304/SCS410 |
|
| 5 |
Disc Pin |
1~2 |
SUS |
|
| 6 |
Bush |
1 Set |
PP |
|
| 7 |
O-Ring |
1 Set |
NBR |
|
| 8 |
Lever |
1 |
Carbon Steel |
|
| | | | |
|
 |
|
|
|
|
|
|
 |
